    SB18

    SB18 01.jpg



    ApplicationFeature
    Touring performance

    AES Power RatingWoofer, neodymium magnetic high Sensitivity unit

    Low frequency response extend to 28Hz;Presubwoofer Limiting Technical

    Combined inverted phase and preamplifier cabinet design

    100mm voice coil high transient high power woofers

    Ergonomic pull-out handles on both sides

    Resistant nylon strips protection

    Thick and elastic hearing

    stadiums
    theaters



    Technical specification

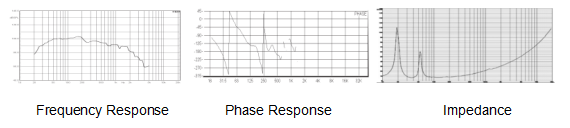

    Frequency Respond30 Hz ~ 180 Hz(±3 dB) ;  25 Hz ~ 250 Hz(-10 dB)
    Nominal Coverage(- 6 dB)Omnidirectional
    Sensitivity(@1w/1m)100 dB SPL
    Power rating1200 W
    Impedance8ohm
    Maximum SPL130dB/140dB SPL peak
    TransducersLF:1x18" All Condition Woofer




    Physical data

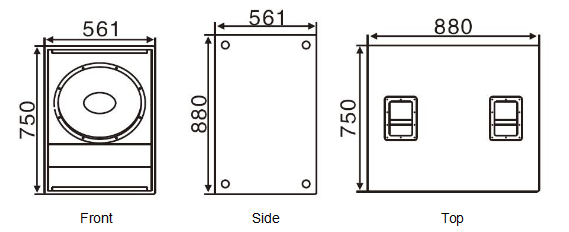

    Dimension561x880x750mm
    Weight48Kg
    Speaker CablesWP4:1-2+,NL4:1+1-
    ConnectorsWP4*2 NEUTRIK NL4MP*2
    Materials

    Imported multi-plywood Environmental waterproof

    AND ANTI-CORROSION COATINGS

    FinishBlack Polyurea paintings
    GrillePorous steel mesh with black spraying
    Installation4 handles, M20 top bracket
    MeshDPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the grille.
