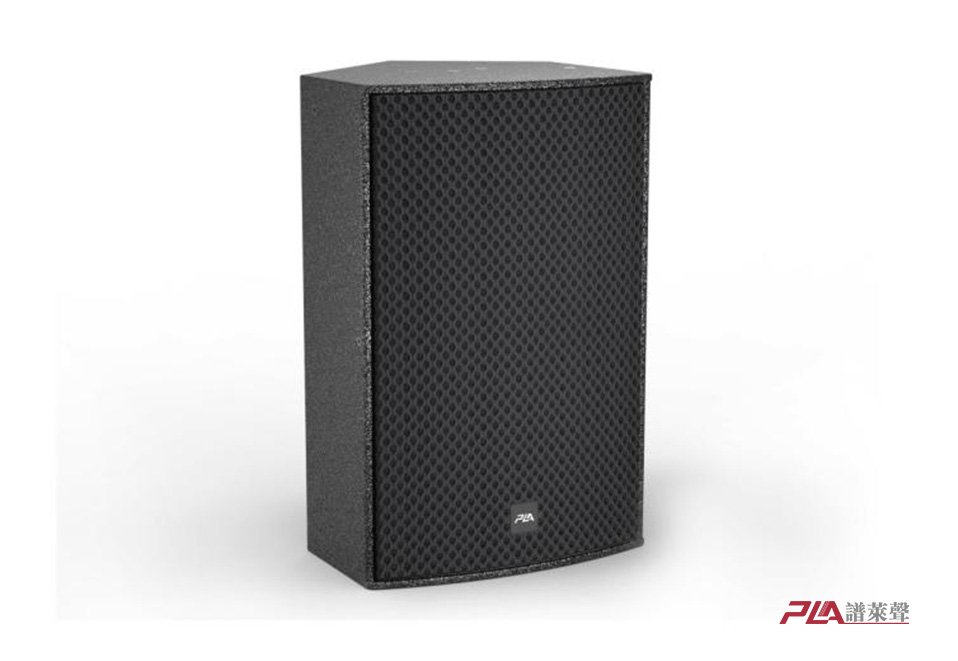

    PS12P



    ApplicationsFeature
    Small FOH

    Rotatable 80 x 50°directivity horn

    Preamplifier circuit technology

    Phase Coherent Technology

    MLC(Microphones&Line Combined Input)

    D-AMP (Class D Amp lifier) Digital Amplifier Circuit Technology

    Elastic bass

    FCT(Full frequency Coherent Technology)

    Selfpowered full range speaker

    Long throw rubber edge LF driver

    Stage Monitor
    Near-Field Sound





    TransducersNominal directivityMaximum SPLPower Rating

    Technical parameters

    Frequency response55Hz~ 18 kHz (±3dB ) ；40Hz ~ 20 kHz(-10dB )

    LF:1x12" All Condition Woofer

    HF:1x1.75" Phase Correction



    80°(H)x50°(V)Constant Directivity
    122dB/132dB SPL peak

    2000W



    SNR

    ≥95dB


    Input connectorsXLR Female Input
    Impedance20kΩBalanced/10kΩUnbalanced
    Output electric circuitClass D circult





    MaterialFinishGrilleGrille

    Physical data

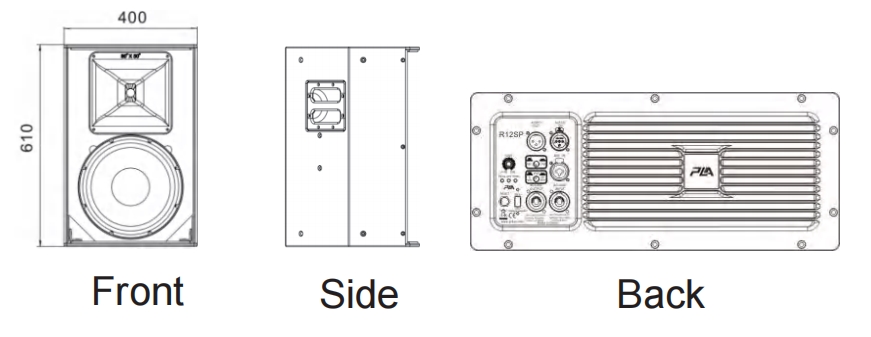

    Dimensions400x410x610mm
    Weight27Kg
    Imported multi-plywood Environmental waterproof and anti corrosion coatings
    Black Polyurea paintings

    Black epoxy mesh grille with acoustically reticulated cloth
    DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
